TRCP 5205TRAIN RADIO CONTROL PANEL
User-friendly, intuitive Train Radio Control Panel ensures reliable Human Machine Interface for rolling stock driver cabin.
Train Radio Control Panel TCP5205 is a Human Machine Interface, typically installed in the driver cabin and provides the train pilot with call functions like Group Call, Half Duplex Individual Call, Full Duplex, Individual Call, Emergency Call, Broadcast Call, Passenger announcements into the Train, Text Messaging and Functional Registration.
This system is fully IP based and provides a secure network architecture offering high level of security and integrity. TRCP provides highest levels of reliability and environmental standards for the transportation industry. Depending on client specific requirements, the TRCP can be customized for key layout, Graphical User Interface (GUI) and onboard integrations.
Type of Calls
Groups Call, Full Duplex Call, Half-Duplex Call, Emergency Call, Request To Talk [RTT], Broadcast Call
Data
Short Data Service [SDS], Status
Priority Levels
15 (TETRA) / 5 (MCPTT)
Modes of Operation
Trunked Mode Operation [TMO] / Direct Mode Operation [DMO]
Onboard Integration
Passenger Announcement/Information, Passenger Emergency, RST Alarms, Onboard Signalling
User Access
Log On /Log Off, Configurable Menu, Settings
Identification
Radio ID, Train ID, Group ID, Talking Party Identification, CLIP
Default Groups
Mainline, Depot, Shunt, Train
| Processor Specifications | Freescale™ i.MX6 800MHz Dual Core ARM® Cortex™ -A9 SoC | Operating System | UBUNTU, Version Bionic 18.02 | |
| Memory Options | SD Card [32GB]
MSATA [128GB] |
TETRA Interface | RS232, TETRA Peripheral Equipment Interface (PEI) | |
| Display | 5.0” TFT, 800*480 pixels, 262K colors | Compliances | TETRA – ETSI EN 300 392
MCPTT – 3GPP Release 15 |
|
| Keypad | Membrane
32 Alphanumeric Keys (Maximum) |
Mechanical Specifications | Dimensions- 257.5 x 148.8 x 57 (in mm)
Weight – 1540 g |
|
| Interfaces | GbE Ethernet Port
USB 2.0 OTG Port up to 480Mbps RS232, RS485/RS422 Serial Port Mini USB 2.0 Port |
Electrical Specifications | 12 V (±10% V), 3.5 A | |
| Accessories | Handset, Fist Microphone (Standby) | Environmental Specifications | Temperature- -40°C to +85°C Humidity –20% to 90% IP rating – IP65 |
TRCP 5207TRAIN RADIO CONTROL PANEL
User-friendly, intuitive, touch-enabled Train Radio Control Panel ensures reliable Human Machine Interface for rolling stock driver cabin.
Train Radio Control Panel TCP5207 is a touch-enabled Human Machine Interface, typically installed in the driver cabin and provides the train pilot with call functions like Group Call, Half Duplex Individual Call, Full Duplex, Individual Call, Emergency Call, Broadcast Call, Passenger announcements into the Train, Text Messaging and Functional Registration.
This system is fully IP based and provides a secure network architecture offering high level of security and integrity. TRCP provides highest levels of reliability and environmental standards for the transportation industry. Depending on client specific requirements, the TRCP can be customized for key layout, Graphical User Interface (GUI) and onboard integrations.
Type of Calls
Groups Call, Full Duplex Call, Half-Duplex Call, Emergency Call, Request To Talk [RTT], Broadcast Call
Data
Short Data Service [SDS], Status
Priority Levels
15 (TETRA) / 5 (MCPTT)
Modes of Operation
Trunked Mode Operation [TMO] / Direct Mode Operation [DMO]
Onboard Integration
Passenger Announcement/Information, Passenger Emergency, RST Alarms, Onboard Signalling
User Access
Log On /Log Off, Configurable Menu, Settings
Identification
Radio ID, Train ID, Group ID, Talking Party Identification, CLIP
Default Groups
Mainline, Depot, Shunt, Train
| Processor Specifications | Freescale™ i.MX6 800MHz Dual Core ARM® Cortex™ -A9 SoC | Operating System | Linux Ubuntu – Focal Fossa 20.04 LTS | |
| Memory Options | SD Card [32GB]
MSATA [128GB] |
TETRA Interface | RS232, TETRA Peripheral Equipment Interface (PEI) | |
| Display | 7.0” TFT, 800*480 pixels, 262K colors | Compliances | TETRA – ETSI EN 300 392
MCPTT – 3GPP Release 15 |
|
| Keypad | Membrane
10 Alphanumeric Keys (Maximum) |
Mechanical Specifications | Dimensions- 257.5 x 148.8 x 57 (in mm)
Weight – 1540 g |
|
| Interfaces | GbE Ethernet Port
USB 2.0 OTG Port up to 480Mbps RS232, RS485/RS422 Serial Port Mini USB 2.0 Port |
Electrical Specifications | 12 V (±10% V), 3.5 A | |
| Accessories | Handset, Fist Microphone (Standby) | Environmental Specifications | Temperature- -40°C to +85°C Humidity –20% to 90% IP rating – IP65 |

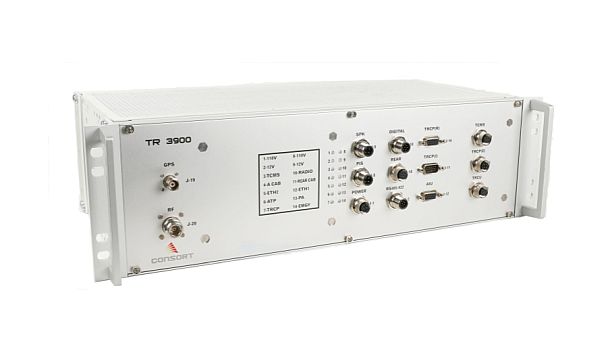

TRS 3900TRAIN RADIO SYSTEM
Train Radio System built on global TETRA or LTE standards for Rolling Stock applications.
Train Radio System TRS 3900 is a versatile, reliable and state-of-art onboard radio solution that is typically installed in each front and rear cabin. It provides radio communication based on global OPEN standards such as TETRA or LTE.
TRS 3900 provides integration for various Rolling Stock systems such as TCMS/TIMS/TIS, PIS/PAS/PA/HP and CCTV using interfaces such as RS232, RS485, RS422, Digital I/O, Audio Lines and Ethernet. The integration facilitates transmission of Passenger Announcements, Help Point Calls, Signalling Data, CCTV video and alarms from onboard systems. TRS 3900 can be deployed in Front-Rear configuration for additional redundancy. 14 Status LEDs provide easy fault monitoring and diagnostics.
Integration to Onboard Systems
Train Control & Management System [TCMS] Train Information System [TIS / TIMS]
Passenger Announcement [PA]
Passenger Information System [PIS]
Passenger Emergency Activation [PEA]
Help Point [HP]
CCTV Video
Interface to Onboard Signalling
Automatic Train Protection [ATP]
European Vital Computer [EVC] ETCS 2
Data from Onboard Systems
Alarms from rolling stock equipment
Alarms from rolling stock link failures
PEA / Help Point Activation
Alarms from rolling stock equipments
Alarms from rolling stock link failures
PEA / Help Point Activation
Active Cabin
Fault Management System
14 LED indicators
Remote display of Alarms on TRCP
Location
Track Circuit, GPS/GLONASS [ Optional]
Onboard Interfaces
GbE Ethernet Port
RS232 / RS 422/ RS 485
Balanced Audio Input/Output
Speaker Audio 8 Ohms 10 W
Bearer
TETRA / LTE
RF
TETRA [10W]
LTE [150mW]
Electrical Specification
43-160 VDC Input ,+ 0.5% [Redundant optional] , EN50155 certified
Mechanical Specifications
Dimensions : 3U [H] x 84HP [W] x235mm [D]
Front Clearance : 200 mm
Recommended Weight : > 3000 g [typical]
Redundancy
Front to Rear Connection
DC-DC Power Converter
Fist Microphone Connection [Direct Audio]
Antenna Connection
TETRA : RF – N[F], GPS – TNC[F]
LTE : MAIN – N[F], AUX – TNC [F]
Compliances
TETRA : ETSI EN 300-392
LTE : 3GPP Release 12+QCI
Accessories
Handset, Fist Microphone (standby)
Environmental Specifications
Temperature- -40°C to +85°C
Operating – -30°C to + 70°C
Humidity –20% to 90%
IP rating – IP20
